ST SM Fiber Optic Attenuator 6dB For Active Device Termination

Model Number : ST UPC 6dB Fiber Optic Attenuator

Certification : CE Rohs SGS ISO

Place of Origin : China

MOQ : MOQ : 100PCS

Price : Price : Negotiable

Payment Terms : Payment Terms:T/T, L/C,paypal,Western Union

Supply Ability : Supply Ability :200000pcs/month

Delivery Time : Delivery Time :3 to 5 days for sample orders, 7 to 15days for bulk order

Packaging Details : Packaging Details : by your request

Connector : ST

Return Loss : ≥50dB

Operating Temperature Range : -40~85°C

Humidity : 95%RH

Attenuation : 6dB

Retum Loss : >50dB

Contact Now

Attenuator Fiber Optic ST SM Male To Female Caremic Operating Wavelength 1310/1550±10

Product Description:

Fiber Optic Attenuator is one kind of optical passive device which is used to debug the performance of the optical power in the optical communication system,debugging fiber optic instrument calibration correction, optical signal attenuation.And used for the attenuation of the input optical power, avoid optical receiver distortion due to input optical power powerful.

Specification:

Fiber Connector	LC/SC/FC/ST
Ferrule Type	Zirconia Ceramic
Transfer Mode	Singlemode(9/125)&multimode(50/125 or 62.5/125 and test Wavelength)
Connector Gender	Fixed Female to Female
Attenuation	1~25dB
Attenuation Accuracy	1-9dB ±0.5, 10-25dB ±10%
Return Loss	>50dB
Polarization Dependent Loss	≤0.2dB
Max Optical Input Power	200mw
Operating Temp Range	-40~85°C
Humidity	95%RH
Storage Temp Range	-40~85°C

Products Pictures:

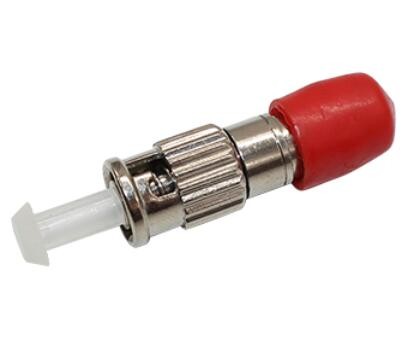

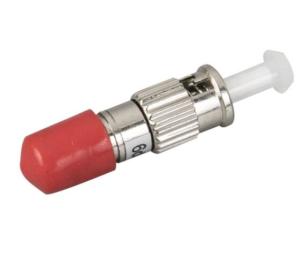

ST SM Fiber Optic Attenuator 6dB For Active Device Termination

Application:

1. Industrial, Medical & Military

2. CATV, Metro

3. Active Device Termination

Product Tags:

SM Fiber Optic Attenuator

ST Fiber Optic Attenuator

fiber optic attenuator single mode
