LSZH Fiber Optic Cable , Indoor Single Mode Armored Fiber Cable

Model Number : Indoor Armored Fiber Optic Cable

Certification : CE Rohs SGS ISO

Place of Origin : China

MOQ : MOQ : 1000meter

Price : Price : Negotiable

Payment Terms : Payment Terms:T/T, L/C,paypal,Western Union

Supply Ability : Supply Ability : 6,000,000 KM per year

Delivery Time : Delivery Time :3 to 5 days for sample orders, 7 to 15days for bulk order

Packaging Details : Packaging Details : according to the quantity of the order

Tight buffer type : 0.6 / 0.9mm PVC / LSZH tight buffer

Operating temperature : -40 to +70

Product name : Indoor Armored Cable

Jacket color : Blue / Grey/ Yellow / Orange

Contact Now

Indoor Armored Fiber Optic Cable Indoor Fiber Optic Cable PVC Or LSZH Inner Sheath

Description:

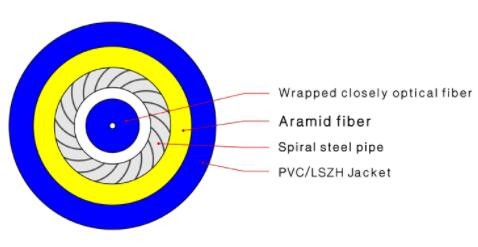

The structure of the cable is put 900μm or 600μm tight buffer fibers with aramid yarn, then covered with a

layer of PVC or LSZH inner sheath, then wrapped a layer of flat stainless steel wires and add a layer of woven stainless steel wire, finally complete with PVC or LSZH sheath.

Specification:

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	850nm			≤3.0dB/km	≤3.0dB/km
	1300nm			≤1.0dB/km	≤1.0dB/km
	1310nm	≤0.36dB/km	≤0.36dB/km
	1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth (Class A)	850			≥500MHZ·km	≥200MHZ·km
Bandwidth (Class A)	1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm
