FTTX Network E2000 Optical Fiber Pigtail APC Polishing

Model Number : E2000 / APC SM Fiber Optical Pigtials

Certification : CE Rohs SGS ISO

Place of Origin : China

MOQ : MOQ : 100PCS

Price : Price : Negotiable

Payment Terms : Payment Terms:T/T, L/C,paypal,Western Union

Supply Ability : Supply Ability :300000pcs/month

Delivery Time : Delivery Time :3 to 5 days for sample orders, 7 to 15days for bulk order

Packaging Details : Packaging Details : 1pc pp bag

cable Type : SM

Cable Diameter(mm) : 0.9 Ф2.0、Ф3.0

Wavelength(nm) : 1260-1650nm

Operating Temperature(℃) : 40~+85

Polishing : APC

Connector : E2000

Contact Now

Fiber Optic Pigtail Single Mode E2000 / APC FTTX Network Application OEM

Product description:

Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

Fiber Patch Cable Options:

1) Ferrule End-face: PC, UPC, APC

2) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)

3) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores,etc

4) Cable Diameter: 3.0mm,2.0mm,0.9mm

5) Cable Length: 1, 2, 3 meter or

6) Cable type: PVC, LSZH, OFNP

specification:

Parameters	SC,LC,FC,E2000			ST,MU		MTRJ
	SM		MM	SM	MM	SM	MM
	UPC	APC	UPC	UPC	UPC	UPC	UPC
Work Wavelength (nm)	1310,1490,1550		850,1300	1310,1490,1550	850,1300	1310,1490,1550	850,1300
Insertion Loss(dB)	≤0.25	≤0.20	≤0.25	≤0.25	≤0.25	≤0.25	≤0.25
Return Loss(dB)	≥55	≥65	≥35	≥50	≥35	≥50	≥35
Repeatability(dB)	≤0.10
interchangeability(dB)	≤0.20
Plug Testing(time)	≥1000
Tensile Strength(N)	0.9mm(9N);2.0mm(70N);3.0mm(75N)
Durability(dB)	≤0.20
Operation Temperature(°C)	-40~+85
Storage Termperature(°C)	-40~+85

Products Pictures

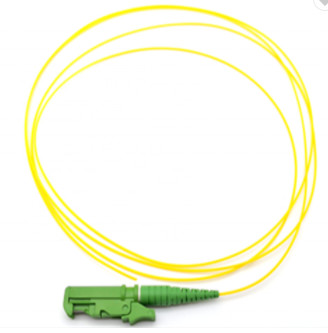

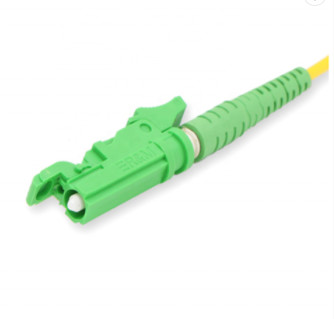

FTTX Network E2000 Optical Fiber Pigtail APC Polishing

Application:

CATV;
Active device termination;
Telecommunication networks;
Metro;
Local Area Networks;
Data processing networks;
Test equipment;
Premise installation;
Wide Area Networks

Shipping:

Door to Door: by express (DHL, UPS, TNT)
Airport to Airport: by air
Seaport to Seaport: by sea : shenzhen port
